Steering Gear Kit Fits Toro Replaces 717-1554

Description

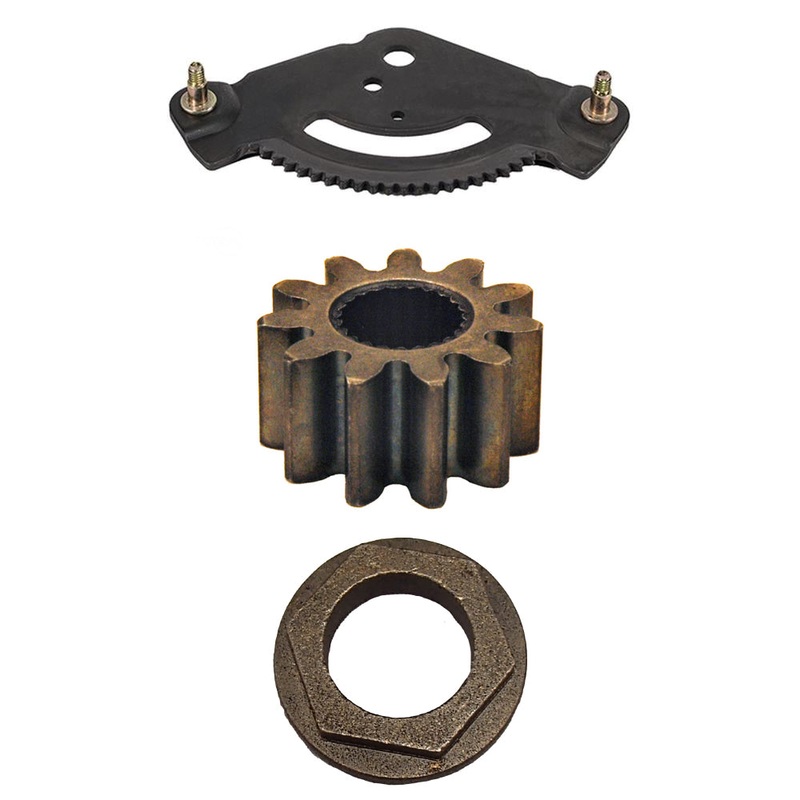

One New Aftermarket Steering Gear Kit

Tech Info:
-Kit Contains:
-(1) Steering Sector Gear
-Tech Info:
-Length 182.8 mm
-Width 123.7 mm
-Height 32.7 mm
-20 Teeth
-Material Metal
-Replaces Part Numbers: 917-1550E, 717-1550, 717-1550A, 717-1550B, 717-1550C, 717-1550D, 717-1550E, 717-1550F
–
-(1) Steering Pinion Gear
-11 tooth. Splined bore
-Replaces Part Numbers: 717-1554, 7171554, 917-1554
–
-(1) Hex Steering Bushing
-Inner Diameter: 5/8″
-Outer Diameter: 7/8″
-Height: 1/4″
-Replaces Part Numbers: 741-0656, 741-0656A, 941-0656A

Made to Fit Toro:
Lawn Mower Models: LX420, LX423, LX425, LX427, LX460, LX468, LX500, GT2100, GT2200, GT2300, SL500
Replaces Part Number(s): 717-1554, 917-1554, 741-0656, 941-0656A
Additional Information: Kit Contains:(1) Steering Sector GearTech Info:Length 182.8 mmWidth 123.7 mmHeight 32.7 mm20 TeethMaterial MetalReplaces Part Numbers: 917-1550E, 717-1550, 717-1550A, 717-1550B, 717-1550C, 717-1550D, 717-1550E, 717-1550F(1) Steering Pinion Gear11 tooth. Splined boreReplaces Part Numbers: 717-1554, 7171554, 917-1554(1) Hex Steering BushingInner Diameter: 5/8″Outer Diameter: 7/8″Height: 1/4″Replaces Part Numbers: 741-0656, 741-0656A, 941-0656A

Reference Numbers:

717-1550F, 717-1554, 717-1554-A, 741-0656
