Steering Kit w/ Bushings and Gear Fits John Deere Replaces 14M7400

Description

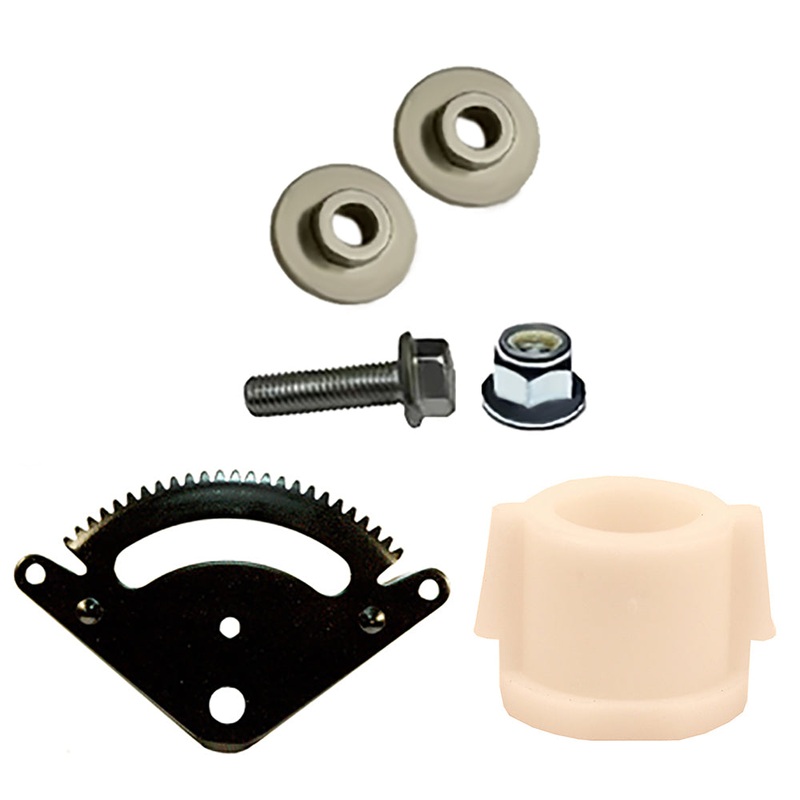

One New Aftermarket Steering Kit w/ Bushings and Gear

Tech Info:
-(1) Sector Gear
-25 Teeth
-Replaces Part Number(s): GX20052, GX20052BLE
–
-(1) Steering Bolt
-Hex Flange Bolt
-Thread Size: 10mm
-Length: 35mm
-Thread Pitch: 1.25mm
-Replaces Part Number(s): 19M7835
–
-(1) Lock Nut
-10mm Nylon locking nut
-Hex Flanged Nut
-Replaces Part Number(s): 14M7400
–
-(2) Steering Shaft Bushings
-Inside Diameter: .625″
-Outside Diameter: .900″
-Height: .870″
-Flange Outside Diameter: 1″
-Replaces Part Number(s): GX21994
–
-(2) Steering Gear Bushings
-Flange Thickness: 0.16″
-Flange Outside Diameter: 1.382″
-Inside Diameter: 0.407″
-Length: 0.45″
-Outside Diameter: 0.710″
-Replaces Part Number(s): UC13360, GX20054

Made to Fit John Deere:
Lawn/Garden Tractor Models: D100, D105, D110, D120, D130, D140, D150, D160, D170, G110, L130, D105, D110, D125, D130, D140, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, L100, L107, L108, L110, L111, L120, S240, X105, X106, X115R, X116R, X125, X126, X135R, X146R, X155R, X165, X166, X166R, 107H, 107S, 92H
Replaces Part Number(s): GX20052, GX20052BLE, 19M7835, 14M7400, GX21994, UC13360, GX20054
Additional Information: (1) Sector Gear 25 TeethReplaces Part Number(s): GX20052, GX20052BLE(1) Steering Bolt Hex Flange BoltThread Size: 10mmLength: 35mmThread Pitch: 1.25mmReplaces Part Number(s): 19M7835(1) Lock Nut 10mm Nylon locking nutHex Flanged NutReplaces Part Number(s): 14M7400(2) Steering Shaft Bushings Inside Diameter: .625″Outside Diameter: .900″Height: .870″Flange Outside Diameter: 1″Replaces Part Number(s): GX21994(2) Steering Gear Bushings Flange Thickness: 0.16″Flange Outside Diameter: 1.382″Inside Diameter: 0.407″Length: 0.45″Outside Diameter: 0.710″Replaces Part Number(s): UC13360, GX20054

Reference Numbers:

HU1770GE103HY, HU1770GE103HY-A
