Steering Sector w/ Pinion, Bolt, & Bushings Fits John Deere Replaces 14M7400

Description

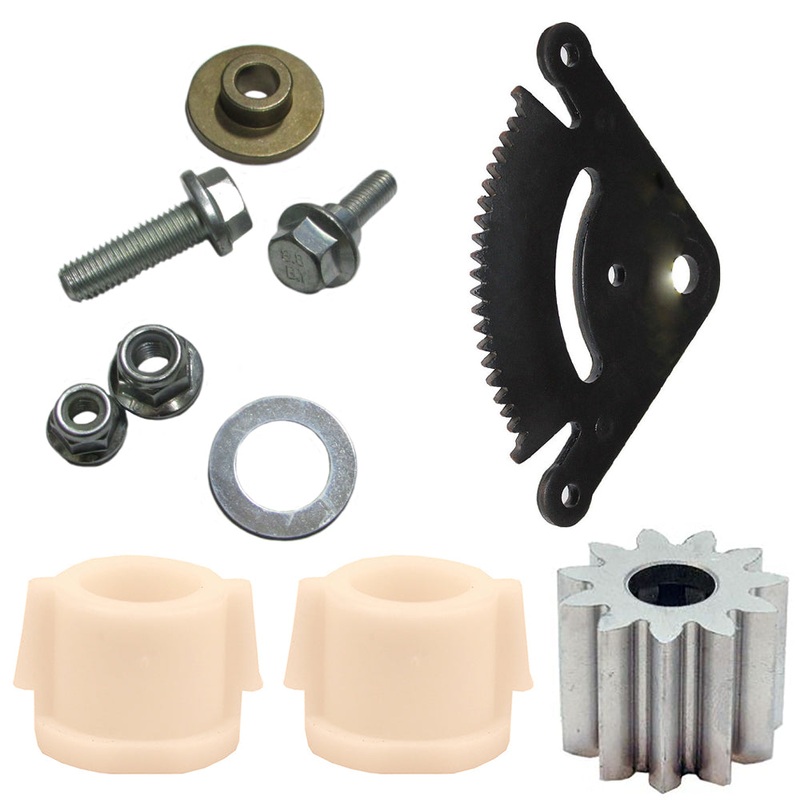

One New Aftermarket Steering Sector w/ Pinion, Bolt, & Bushings

Tech Info:
-Kit Contains:
–
-(1) Steering Sector Gear
-Teeth: 21
-Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785
–
-(1) Pinion Gear
-Height: 1″
-OD: 1 3/8″
-Replaces Part Number(s): GX20053
–
-(1) Steering Gear Bushing
-Flange Thickness 0.16″
-Flange Outside Diameter 1.382″
-Inside Diameter 0.407″
-Length 0.45″
-Outside Diameter 0.710″
-Replaces Part Number(s): UC13360, GX20054
–
-(1) Steering Bolt
-Hex Flange Bolt
-Thread Size: 10mm
-Length: 35mm
-Thread Pitch: 1.25mm
-Replaces Part Number(s): 19M7835
–
-(1) Hexagonal Lock Nut – M10
-Flange Diameter: 21.80mm
-Wrench Height: 5.60mm
-Thickness: 13.50mm
-Replaces Part Number(s): 14M7400
–
-(1) Hexagonal Lock Nut – M10
-10mm x 1.25mm Pitch
-Width Across Flats: 17mm
-Wrench Height: 7mm
-Replaces Part Number(s): 14M7455
–
-(1) Locking Flange Nut
-Thread Size: 8mm
-Pitch: NC
-Thread Style: Right Hand
-Replaces Part Number(s): 14M7396
–
-(1) Shoulder Bolt
-Thread Size: 8mm
-Length: 1.1
-Replaces Part Number(s): M153513
–
-(1) Flat Washer
-ID: .781″
-OD: 1.25″
-Thickness: .036″
-Material: Steel
-Replaces Part Number(s): 24M7053
–
-(2) Steering Shaft Bushing
-I.D.: .625″
-O.D.: .900″
-Height: .870″
-Flange OD: 1″
-Replaces Part Number(s): GX21994

Made to Fit John Deere:
Replaces Part Number(s): 14M7400, GX20053, GX21924BLE, UC13360, 19M7835, 24M7053, GX21994, 14M7455

Models This Part Fits:

G110, L100, L105, L107, L108, LA100, LA105, LA110, LA120, LA125, LA130, LA135Additional Information: Kit Contains: (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Pinion Gear Height: 1″ OD: 1 3/8″ Replaces Part Number(s): GX20053 (1) Steering Gear Bushing Flange Thickness 0.16″ Flange Outside Diameter 1.382″ Inside Diameter 0.407″ Length 0.45″ Outside Diameter 0.710″ Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Hexagonal Lock Nut – M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400 (1) Hexagonal Lock Nut – M10 10mm x 1.25mm Pitch Width Across Flats: 17mm Wrench Height: 7mm Replaces Part Number(s): 14M7455 (1) Locking Flange Nut Thread Size: 8mm Pitch: NC Thread Style: Right Hand Replaces Part Number(s): 14M7396 (1) Shoulder Bolt Thread Size: 8mm Length: 1.1 Replaces Part Number(s): M153513 (1) Flat Washer ID: .781″ OD: 1.25″ Thickness: .036″ Material: Steel Replaces Part Number(s): 24M7053 (2) Steering Shaft Bushing I.D.: .625″ O.D.: .900″ Height: .870″ Flange OD: 1″ Replaces Part Number(s): GX21994

Reference Numbers:

14M73961, 14M73961-A, 14M7400, 14M7400-A, 19M7835-A, 20225, 24H1856, 24H1856-A, GU5771GE103HF, GU5771GE103HF-A, GX20053, GX20053-A, GX21942BLE, GX21942BLE-A, GX21994, GX21994-A, GX25785, GX25785-A, GX25785BLE, KBME02SEC[GEAR]COMBO, KBME02SEC[GEAR]COMBO-A, M153513, M153513-A, M153513KIT
